A compact 1/2-inch valve can solve a very specific problem: you need dependable shutoff or flow control in a tight space without overbuying a larger assembly. That sounds simple, but the details matter quickly. Connection type, material, pressure rating, and turn style all change how easy a valve is to install and how well it holds up once it is in service. For buyers working on plumbing, irrigation, hydronic, aquarium, or general fluid-control projects, the wrong choice often means leaks, awkward fitment, or a valve that is harder to operate than expected.
This roundup focuses on five mini ball valves in the same size family but with very different connection styles and operating priorities. Some are better suited to PEX or barbed tubing. Others are better for threaded builds or for users who want a compact manual shutoff. The best option depends less on the label and more on the exact connection geometry, material, pressure limit, and where the valve will live. The goal here is to translate those differences into practical buying decisions so you can choose the right valve the first time.
Top 1/2″ Mini Thermostatic Valve With Volume Control on the Market
1/2-in Brass PEX Ball Valve 2-Pack
Best PEX shutoff
- Forged lead-free brass
- ASTM F1807 compliant
- NSF 61 and 372
- 125 psi maximum pressure
- PEX crimp compatibility
Beduan 1/2-In Stainless Barb Valve
Best hot-service pick
- 304 stainless steel body
- 0.512-inch hose ID
- -39°F to 380°F
- Double-seal flow path
- Quarter-turn operation
Habitech 13mm Inline Ball Valve
Best flow-control value
- 13mm for 0.520 ID tubing
- 45 psi maximum pressure
- Acetal plastic construction
- Full-open to full-stop control
- Two-valve pack
Beduan Brass NPT Shutoff Valve
Best threaded shutoff
- Brass with chrome finish
- 1/2-inch NPT male x female
- Quarter-turn operation
- Double-seal flow path
- Threaded connector
CPWUFIYD 1/2-In NPT Ball Valves
Best two-pack threaded set
- Two-valve pack
- 1/2-inch NPT threads
- Aluminum handles
- Brass and aluminum build
- Quarter-turn operation
1/2″ Mini Thermostatic Valve With Volume Control Reviews
1/2-in Brass PEX Ball Valve 2-Pack
ADVANTAGES
LIMITATIONS
This valve is the strongest match for a PEX-based project where safe drinking-water use matters. The forged lead-free brass body and DZR construction matter because they are aimed at resisting dezincification in wet service, which is a meaningful advantage over generic brass hardware. Its cUPC, NSF61, and NSF372 compliance also points it toward potable-water and hydronic work instead of casual low-stakes use. The 1/2-inch PEX ends keep the package focused, and the 2-pack format suits manifold work, paired shutoffs, or a small zone where you want matching hardware.
Connection compatibility is the real operational benefit here. The valve is built for ASTM F1807 brass insert-type PEX systems and is listed as compatible with stainless-steel cinch rings, pinch clamps, and copper crimp rings across major PEX brands. That broad compatibility reduces the chance that you buy a valve that looks right but does not match your preferred crimp method. The quarter-turn action is also important in cramped mechanical spaces because it lets you isolate flow quickly instead of hunting for multiple revolutions. The compact body helps, but the item dimensions still demand enough clearance to work the T-handle comfortably.
Against the other valves in this group, this is the one to choose when PEX fitment and compliance are the priority rather than generic versatility. It brings a clear pressure rating of 125 psi and a small footprint, but it is not the most universal option for threaded pipe or hose barb transitions. Buyers building potable-water runs, hydronic branches, or organized PEX manifolds should place it near the top of the list. If your project starts with PEX and ends with code-conscious materials, this is the most defensible pick.
Beduan 1/2-In Stainless Barb Valve
ADVANTAGES
LIMITATIONS
This valve is the most material-forward option in the group. The 304 stainless steel body is the key distinction, especially if corrosion resistance and higher-temperature tolerance matter more than a low-cost plastic body or a brass threaded fitting. The published working-temperature range from –39°F to 380°F is unusually broad for a small inline valve, so it suits setups where fluid conditions may swing widely. The 13 mm hose ID spec also keeps the sizing clear for tubing-based installs that need a true barb connection rather than an adapter-heavy workaround.
The practical consequence of the barb-to-barb design is that it stays centered on hose and tubing systems instead of branching into thread conversion. That can simplify drip, irrigation, air, fuel, or utility-style routing where a compact inline shutoff is all you need. The double-seal system is useful because it supports flow in either direction, which reduces the chance of orienting the valve the wrong way in a simple line. Its aluminum-alloy handle and quarter-turn action are aimed at quick on/off use, which matters when the valve may be operated by hand in a service area or tight cabinet.
Compared with the PEX-focused brass option, this one is less about code-driven potable-water integration and more about tough universal hardware for hose-based systems. It also differs from the lower-cost plastic inline valve by trading in more temperature headroom and a metal construction that better suits demanding service. That said, the hose-ID sizing is more specific than the threaded valves, so you need to measure carefully before committing. For buyers who want a compact stainless inline valve with broad temperature tolerance, this is the strongest all-around alternative.
Habitech 13mm Inline Ball Valve
ADVANTAGES
LIMITATIONS
This valve is built for buyers who care more about controlled water routing than about metal construction. The 13 mm size is important because it is meant for 1/2-inch tubing with a 0.520-inch inside diameter, not the larger 0.570 to 0.620-inch drip tubing that often trips buyers up. That sizing specificity is the main strength here. If your system matches, the valve can regulate, slow, divert, or shut off flow without requiring a more complex manifold or large inline component.
The operating style is simple and useful. It goes from full-open to full-stop, and the clear on/off markings make day-to-day operation straightforward. The acetal body is a practical choice in this price tier because it stays compact and smooth-turning. The product also notes that it will not stick like some PVC ball valves, which matters in systems that may sit idle and then need quick manual adjustment. With an operating pressure up to 45 psi, it is best kept in moderate-demand fluid systems rather than higher-pressure plumbing.
Against the stainless and brass alternatives, this is the lightweight flow-control choice rather than the durability-first or code-compliance-first choice. It is less expensive than the metal valves and comes as a 2-pack, which improves value if you are controlling multiple branches or building a small irrigation layout. The tradeoff is that you must respect the tubing size and pressure limit. For aquariums, hydroponics, ponds, and other moderate-pressure water systems, it is a smart, focused buy when exact tubing fit matters more than rugged metal hardware.

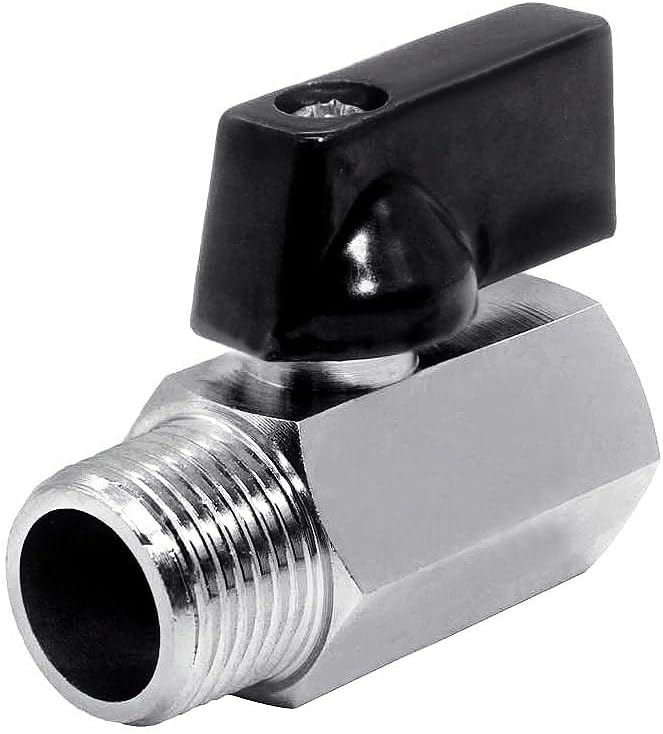

Beduan Brass NPT Shutoff Valve
ADVANTAGES
LIMITATIONS
This is the cleanest match for a threaded pipe installation where a compact shutoff is all that is needed. The 1/2-inch NPT male x female arrangement is the defining feature, and it matters because threaded plumbing often needs a small inline valve that does not force a change in the rest of the assembly. Brass with a chrome finish gives it a more traditional utility-valve profile, and the compact format keeps it useful in tight sections where larger handled valves would be awkward or overbuilt.
Its main advantage is straightforward control. The quarter-turn action is the kind of operation you want when the valve sits in a service line, branch, or utility loop that may be opened and closed repeatedly. The double-seal system allows flow in either direction, which reduces orientation anxiety during installation. One caution is the note to keep the valve shut off while installing it. That is not a casual detail, because a small threaded valve is often used in areas where final tightening and orientation happen close together. The threaded connector type also means sealing quality depends on proper thread prep and assembly discipline.
Compared with the PEX valve, this one is less dependent on insert fittings and crimp tools. Compared with the barbed models, it is more at home in rigid pipe runs and appliance-adjacent plumbing. The tradeoff is that it does not bring the potable-water compliance set or the temperature-focused stainless body of some alternatives. Still, for buyers who need a compact threaded brass shutoff at a modest price, this is one of the most practical choices in the group. It deserves attention when your system already speaks NPT.
CPWUFIYD 1/2-In NPT Ball Valves
ADVANTAGES
LIMITATIONS
This two-pack is aimed at buyers who need a threaded shutoff solution in more than one place. The 1/2-inch NPT format keeps it aligned with common rigid plumbing and utility hookups, while the brass-and-aluminum material mix gives it a different feel from all-brass or stainless options. The two-piece set matters for value because it allows matched valves in a small system without forcing a second purchase later. If you are building a pair of branch shutoffs, parallel utility lines, or a small maintenance stock, the pack count is a real advantage.
The heavy-duty aluminum handles are the practical feature that separates this set from simpler mini valves. Handles affect how confidently you can open or close a valve when access is awkward, so a sturdier handle can improve everyday operation even when the body dimensions are compact. The quarter-turn layout keeps the control familiar, and the double-seal system lets flow move in either direction. The broad application note for air, gas, liquid, and steam shows versatility, but the buyer still needs to respect system compatibility and proper installation practices, especially in threaded assemblies where seal quality matters.
Compared with the single-valve threaded brass option, this one is more about buying in pairs than about shrinking initial cost per valve. It does not bring the same all-brass simplicity, but it does give you two units and a handle design that may be easier to manipulate. Against the PEX and barb valves, it wins when your project already uses NPT threads and you want matched hardware instead of adapters. For buyers who want a practical two-valve threaded set, this is a sensible and economical finish to the shortlist.
How to Choose a 1/2-In Mini Ball Valve
The right mini ball valve is less about brand loyalty and more about matching the valve to the way your system is built. A valve that fits the connection style but ignores the pressure limit or material environment can become a weak point fast. The buyers who do best here usually start with the pipe or tubing already on hand, then narrow the options by service temperature, shutoff frequency, and whether the line is potable, irrigation-based, or just a general utility run.
Connection Type
The first decision is the connection style on both ends of the valve. PEX, barb, and threaded NPT fittings solve different problems, and they are not interchangeable without adapters. That matters because adapters add cost, space, and leak points. A PEX-oriented valve is best when the system already uses crimp or clamp hardware. A barb valve belongs on tubing. A threaded valve belongs in rigid pipe work or appliance-adjacent installs where disassembly is part of the design.
Material and Environment
Valve material should reflect what the fluid and surroundings will do over time. Brass is common because it stays compact and is easy to work with. Stainless steel becomes more attractive when corrosion resistance or higher-temperature tolerance matters more. Plastic can be a smart choice in moderate-pressure water systems, especially where weight and cost matter. Think about whether the valve will sit in a damp mechanical space, outdoors, or in a system exposed to temperature swings. The wrong material choice often shows up later as stiffness, wear, or premature replacement.
Pressure and Temperature
A valve that is physically the right size can still be the wrong choice if its operating rating is too low for the system. Pressure limits matter in pump-fed lines, irrigation branches, and plumbing runs that can spike above a mild gravity-flow setup. Temperature range matters just as much when the valve may see hot water, heated loops, or cold-weather exposure. Higher ratings usually narrow the list quickly. If the valve will live in a stable, low-demand line, you can prioritize fit and convenience more heavily than extreme ratings.
Handle and Access
Mini valves often live in the tight places where access is poor and quick shutoff matters. Handle shape and clearance become surprisingly important in those spots. A quarter-turn ball valve is useful because it does not require repeated rotation, and a T-handle or larger lever can improve leverage when fingers and tools have little room. Check the physical envelope around the valve, not just the nominal size. If you cannot turn the handle cleanly after installation, the valve is not really the right fit even if the threads or tubing size look correct.
Flow Control Needs
Some buyers need simple on-off service. Others need to modulate or isolate a branch without stopping the whole system. That difference should guide the purchase. Inline barbed valves for tubing are often the most convenient when you want to fine-tune flow in hydroponics, aquariums, or irrigation. Threaded shutoff valves are often better when the priority is dependable isolation in pipe runs. If you only need a seasonal shutoff, choose the simplest reliable option. If you expect frequent adjustments, prioritize a valve that turns smoothly and is easy to read at a glance.
Compliance and Use Case
For potable-water or hydronic work, certification and standards compliance are not extras. They are part of the buying decision because they help separate general-purpose hardware from components intended for water service. If a valve will touch drinking water, check that the relevant safety and material standards are present before you focus on price. In less formal systems such as aquarium plumbing, drainage, or garden flow control, the deciding factors often shift toward fit, smooth operation, and pressure headroom. Use the service environment to filter the field early.
Mini Ball Valve Comparison Table
| Product | Best For | Connection | Material | Pack Size | Thread Size | Exterior Finish |
|---|---|---|---|---|---|---|
| 1/2-in Brass PEX Ball Valve 2-Pack | Best PEX shutoff | F1807 PEX | Brass | 2 | 1/2 inches | Brass |
| Beduan 1/2-In Stainless Barb Valve | Best hot-service pick | Barb | 304 stainless steel | Not Specified | Not Specified | 304 Stainless Steel |
| Habitech 13mm Inline Ball Valve | Best flow-control value | Barb | Plastic | 2 | Not Specified | Plastic |
| Beduan Brass NPT Shutoff Valve | Best threaded shutoff | National Pipe Tapered | Brass | Not Specified | 1/2″ | Chrome |
| CPWUFIYD 1/2-In NPT Ball Valves | Best two-pack threaded set | National Pipe Tapered | Aluminum, Brass | 2 | 1/2 inch | Aluminum,Copper |
How We Tested & Analyzed 1/2″ Mini Thermostatic Valve with Volume Control
This article was built by comparing the most decision-relevant facts for each valve category entry point. The analysis prioritized connection type, material, pressure rating, temperature range, certifications where present, and the practical consequences of handle style and pack count. Those details matter because they determine whether a valve can be installed cleanly, used safely, and kept accessible once it is in service. The goal was to judge real buying usefulness, not to reward the longest specification list.
Where multiple products served similar roles, the analysis separated them by installation context and operating constraints. PEX-compatible valves were assessed against tubing compatibility and compliance. Barb valves were assessed against hose ID matching and flow-control convenience. Threaded valves were assessed against compact shutoff use and the degree of installation care they require. That approach makes the comparisons more useful than a simple spec tally because it reflects how buyers actually choose among mini valves.
Limitations were handled by leaving out any claim not clearly supported by the product record. That meant avoiding assumptions about long-term durability beyond the listed materials and avoiding inflated claims about performance in systems not directly described. When a spec was missing, it was treated as unknown rather than filled in from category expectations. This keeps the recommendations grounded and helps the reader focus on the facts that genuinely change the purchase.
Frequently Asked Questions
How do I choose between PEX, barb, and threaded valves?
Choose the valve that matches your existing connection system. PEX valves belong in crimp or clamp builds. Barb valves belong on tubing with the correct inside diameter. Threaded valves belong in NPT pipe runs. The safest purchase is the one that minimizes adapters, because every extra transition adds cost and another possible leak point.
Does mini size mean lower performance?
Not necessarily. Mini mainly describes the valve’s compact body and space-saving profile. Performance depends more on the connection type, material, and pressure rating than on size alone. A well-matched mini valve can work very well in a tight cabinet, manifold, or tubing run. The key is whether its rated use fits your system demands.
When does pressure rating matter most?
Pressure rating matters most in pump-fed systems, pressurized water lines, and any setup that may see spikes during operation. A low-pressure valve can still be fine in gentle service, but it should not be used as though it were rated for a harder-working line. Match the rating to the system, not to the smallest fitting in the assembly.
Why does handle style matter on a small valve?
Handle style affects how easily you can operate the valve once it is installed in a cramped space. A quarter-turn design is already a major convenience, but the handle still matters when fingers, nearby pipes, or cabinet walls reduce access. A better handle shape can make routine shutoff feel straightforward instead of awkward.
Final Thoughts
A good mini ball valve disappears into the system only after it has solved the hard part: matching the connection, surviving the environment, and turning cleanly when you need it. That is why the smartest buyer starts with fit and service conditions rather than price alone. The best PEX choice, the best barb choice, and the best threaded choice each serve a different kind of build, and the right one is the valve that removes adapters, reduces uncertainty, and fits the way the line will actually be used.
Once you narrow the field by connection type, the rest becomes a tradeoff between compliance, material, pressure tolerance, and convenience. Potable-water jobs should stay close to certified materials. Tubing systems should favor exact ID matching and smooth flow control. Threaded plumbing should prioritize compact shutoff and careful installation. If you keep those priorities in order, choosing a 1/2-inch mini ball valve becomes a practical decision instead of a guess.
