Choosing a solenoid valve is less about picking the lowest price and more about matching the valve’s job to the system around it. The right body material, port size, voltage, pressure ceiling, and duty profile can mean the difference between smooth control and repeated rework. That is especially true in plumbing, pneumatic, fuel, irrigation, and appliance applications, where a valve that looks similar on paper may behave very differently once pressure, temperature, or cycle frequency enters the picture.
The five options below cover distinctly different needs. Some are compact valves for small-bore liquid or air routing. Others are built for broader pneumatic control or larger flow paths. The comparison focuses on verified fit, operating limits, connection style, and practical tradeoffs so you can narrow the field by use case rather than by guesswork. If you already know the medium, power source, and port size you need, the right choice becomes much clearer.

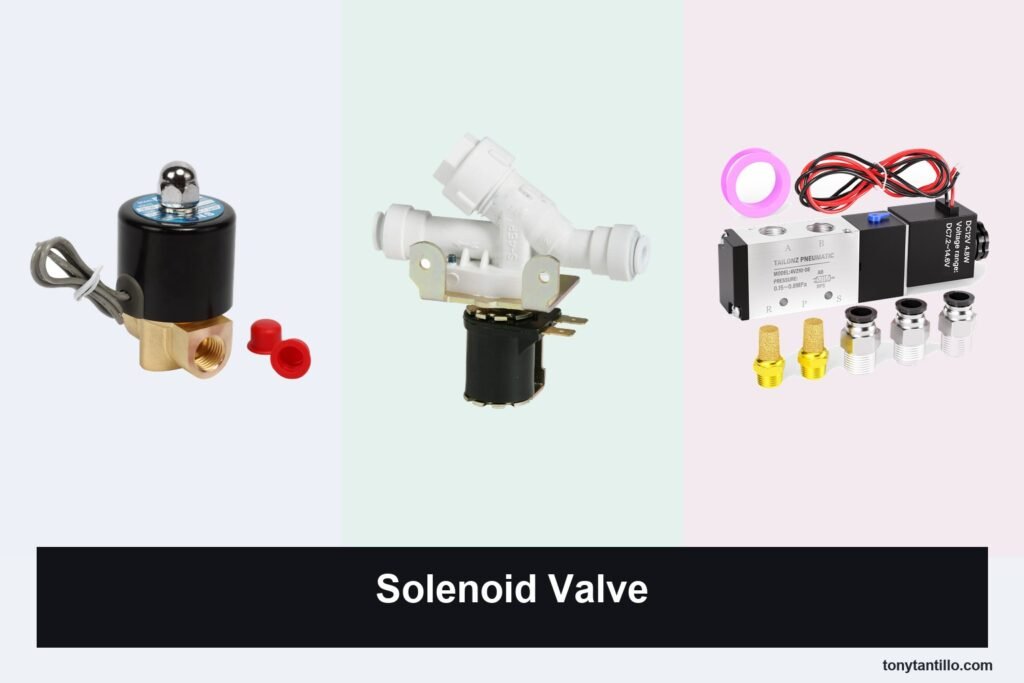

Top Solenoid Valve on the Market
SNS 1/4 NPT DC12V Brass Solenoid Valve
Best compact utility valve
- 1/4 inch NPT ports
- Brass body
- DC12V coil
- Normally closed
- Water, air, diesel
Halsey Taylor Elkay 35981C Solenoid Valve
Best replacement fit
- 1/4 inch by 1/4 inch
- For EZ/HTV series
- Very compact housing
- 5.6 ounce weight
TAILONZ Pneumatic 4V210-08 5-Way Valve
Best pneumatic controller
- 2-position, 5-way design
- DC12V single coil
- 1/4 inch NPT ports
- 1/8 inch exhaust port
- 4 responses per second
U.S. Solid 1 Inch Stainless Solenoid Valve
Best heavy-duty valve
- 1 inch NPT size
- Stainless steel body
- 110VAC coil
- Normally closed
- VITON seal
Buyers Products BAV050SA 4-Way Air Valve
Best flexible air valve
- 4-way, 2-position design
- Convertible to 3-way
- Five 1/4 inch NPT ports
- 12V coil
- Flying leads wiring
Solenoid Valve Reviews
SNS 1/4 NPT DC12V Brass Solenoid Valve
ADVANTAGES
LIMITATIONS
This SNS valve is the straightforward pick for small systems that need a compact, normally closed shutoff in a familiar 1/4 inch format. The brass body suits general-purpose liquid and air control, while the DC12V coil keeps it in the orbit of common low-voltage control panels and portable setups. Because it is described for water, air, and diesel, it reaches beyond simple irrigation use and can serve as a compact control point in hobby, shop, or light industrial lines where those media are already part of the system.
The main practical advantage is its plain threaded interface and compact footprint. With 1/4 inch NPT connections and a body sized at 1.69 x 1.65 x 3.01 inches, it is easier to place than larger multiport valves when space is tight. The 145 psi maximum pressure is a useful ceiling for many small systems, but buyers still need to stay mindful of the temperature range, which is listed at -5 ℃ to 85 ℃. That makes it more suitable for controlled indoor or sheltered environments than for harsh exposure.
Against the others here, this is the most economical option that still feels broadly useful instead of overly specialized. It does not bring the multi-way routing of the pneumatic valves or the larger flow path of the 1 inch unit, but it compensates with simplicity and a general-purpose brass build. The CE and RoHS markings add confidence for standard equipment integration. Choose this when you want a compact, low-voltage valve for small-bore control and do not need an elaborate port arrangement.
Halsey Taylor Elkay 35981C Solenoid Valve
ADVANTAGES
LIMITATIONS
This valve is the most obviously replacement-oriented option in the group. Its appeal is not broad versatility but exact compatibility with old-style EZ/HTV series Rev B and lower units from July 2008. That matters because appliance and dispenser repairs often fail when a nearly matching valve cannot align with the existing housing, threading, or water path. The 1/4 inch to 1/4 inch format keeps it focused on that narrower service role, and the compact 1 x 1 x 1 inch size reinforces that intent.
Because it is built around a specific legacy application, setup is less about adapting a system and more about restoring one. The 5.6 ounce weight suggests a small component that fits into constrained equipment cabinets without adding bulk. The tradeoff is clear: this is not the broadest choice for new builds, and the material description is not especially specific. Buyers need to value exact form factor and replacement continuity more than feature depth. That is often the right priority in dispenser maintenance.
Compared with the other valves here, this is the least general-purpose and the most targeted. That limitation is also its strength. A replacement part can be the best part when it is the one that fits without modification. If your need is to bring an older EZ/HTV unit back into service, this is the most defensible pick. For anyone designing a fresh system, the more openly specified brass and pneumatic valves elsewhere in the group are usually easier to evaluate.
TAILONZ Pneumatic 4V210-08 5-Way Valve
ADVANTAGES
LIMITATIONS
This TAILONZ valve is aimed at buyers who need actual pneumatic routing rather than simple on-off flow. The 2-position, 5-way layout is the key point, because it lets the valve manage cylinder motion and exhaust paths in a way a two-port shutoff cannot. The DC12V coil also keeps it compatible with common control systems, and the aluminum construction is a practical fit where weight and corrosion resistance matter more than heavy industrial body mass. For air-driven equipment, that combination is more functional than decorative.
The port layout does the real work here. With 1/4 inch NPT inlet and outlet threads and a 1/8 inch exhaust port, it is built for standard pneumatic hose and fitting sizes. The stated maximum pressure of 116 psi sits in a useful range for many shop and equipment applications, though it is lower than the SNS valve’s listed 145 psi ceiling. The operating range is also more specific, with working pressure and temperature guidance that signals a valve meant for controlled pneumatic service rather than broad fluid compatibility.
Against the other valves in this set, this model stands out because it solves motion control instead of basic shutoff. That makes it the most relevant option for air cylinders, small automation projects, and systems that benefit from quick shifting. The stated response speed of 4 times per second points to a valve designed for repeated actuation rather than occasional use. Choose this if the job is pneumatic control and you need multiple ports, not just a simple closed or open flow path.
U.S. Solid 1 Inch Stainless Solenoid Valve
ADVANTAGES
LIMITATIONS
This U.S. Solid valve is the strongest choice here when the job calls for a larger line and a more durable body. The 1 inch threaded size immediately separates it from the 1/4 inch valves in the group, so it is meant for more substantial flow paths rather than compact control branches. Stainless steel construction and a VITON seal push it toward tougher service where heat, chemicals, or harsher fluids are part of the environment. That is why it is described for water, gasoline, diesel fuel, kerosene oil, natural gas, and air.
The operational profile is also more serious. It is a 110VAC valve, so it fits line-powered installations rather than low-voltage control systems. The maximum pressure is listed at 72 psi, which is lower than some smaller brass options, but that does not erase its role in larger-diameter systems where material resilience is the higher priority. The statement that it opens and closes in less than 1 second also matters in applications that need decisive actuation rather than slow modulation.
Compared with the other four, this is the premium durability choice rather than the most versatile utility pick. It is not the best match for low-voltage compact setups, and it is explicitly not a continuous-duty valve for more than 8 hours in a single cycle. That limitation is important, but so is the one-year warranty and the detailed standards list, which includes ISO 9001, GB/T 19001, EN61000-6-1, EN61000-6-3, and CE. Choose this when you need a large, sturdy valve and can respect its duty-cycle boundary.
Buyers Products BAV050SA 4-Way Air Valve
ADVANTAGES
LIMITATIONS
This Buyers Products valve is the most adaptable air-control option in the lineup. A standard 4-way, 2-position layout is already useful for pneumatic motion control, and the ability to convert it to 3-way operation with pipe plugs expands how it can be used without changing the core valve. The five 1/4 inch NPT ports keep it in the same practical fitting size as many shop air systems. For tailgate cylinders, compressors, and other pneumatic setups, that flexibility is the central reason to look at it.
The 12V coil and 2 inch flying leads matter because they reduce the friction of installation. Instead of forcing an awkward wiring solution, the valve is already arranged for straightforward electrical hookup in vehicle or equipment environments. The aluminum and plastic material mix is lighter than the stainless option above, so it is more about applied pneumatic control than chemically aggressive service. At 8.48 ounces and 2.05 x 5.2 x 1.4 inches, it is also compact enough to mount where space is limited but a multiport layout is still required.
Compared with the TAILONZ valve, this model is less about rapid pilot-actuated response and more about work-ready flexibility across common air systems. Compared with the SNS and U.S. Solid valves, it is not a simple two-port shutoff and not a broad fluid valve. It occupies a middle ground that many pneumatic buyers actually need: enough complexity for cylinder control, but not so much specialization that setup becomes awkward. Choose it when you want a dependable air valve with adaptable routing and easy wiring.
How to Choose a Solenoid Valve
The right solenoid valve is the one that matches the medium, porting, voltage, and operating environment without forcing compromises in the wrong place. A compact valve for water or air can be perfect for one system and completely wrong for another if the duty cycle, pressure, or thread type does not line up. The goal is to buy once and install with confidence, not to discover after the fact that a valve is underbuilt, overbuilt, or incompatible.
Port Size
Port size is the first filter because it sets the flow path and the fittings you can use. A 1/4 inch valve is common in compact liquid and pneumatic systems, while a 1 inch valve belongs in much larger lines. If you choose a valve that is too small, it can become a bottleneck and limit performance. If you choose one that is too large, it may be harder to fit, more expensive, and unnecessary for the job.
Power Match
Voltage has to match the control circuit you already have. Low-voltage DC valves are useful in portable, mobile, or electronics-based systems, while AC valves fit line-powered equipment. The practical issue is not just whether the valve energizes. It is whether the whole control path is designed around that power source. A valve that matches the wrong electrical setup can create extra wiring, extra parts, or a complete dead end during installation.
Flow Pattern
A two-port valve usually serves simple open-and-close control. Multiport valves are for systems that need directional routing, cylinder movement, or exhaust management. The more ports a valve has, the more function it can support, but the more carefully you need to think about the system diagram. Choose a simple shutoff when the goal is only to allow or block flow. Choose a multiway design when the valve has to steer air or fluid through different paths.
Material Choice
Body material matters because it affects corrosion resistance, temperature tolerance, and how comfortable the valve is with different media. Brass is often a practical general-purpose choice. Stainless steel is the better answer when durability and harsher service conditions matter more. Aluminum can be a useful middle ground for pneumatic equipment where weight and packaging are important. The main decision is not which material sounds strongest, but which one matches the fluid, pressure, and environment you expect.
Duty and Temperature
Some solenoid valves are meant for brief actuation, while others are better suited to intermittent use. That difference matters a lot in real systems. A valve that is not continuous duty can be damaged if it stays energized too long. Temperature range matters for the same reason. A valve that works well in a moderate indoor range may be a poor choice for freezing weather, heat exposure, or fluid temperatures that push beyond its safe operating window.
Replacement Fit
Replacement buyers should focus on exact connection type, size, and the application the valve was originally designed to serve. A part that looks close but does not match the original housing, thread, or port count can create more repair time than it saves. In replacement work, compatibility is often more important than flexibility. If you are restoring an appliance or piece of equipment, the best valve is the one that fits without altering the system around it.
Solenoid Valve Comparison Table
| Product | Best For | Port Size | Ports | Material | Pressure | Power |
|---|---|---|---|---|---|---|
| SNS 1/4 NPT DC12V Brass Solenoid Valve | Best compact utility valve | 1/4”NPT | 4 | Brass | 145 psi | Threaded |
| Halsey Taylor Elkay 35981C Solenoid Valve | Best replacement fit | 1/4″ (0.25 inches) | 2 | Various | Not Specified | Not Specified |
| TAILONZ Pneumatic 4V210-08 5-Way Valve | Best pneumatic controller | 1/4 inch | 5 | Aluminum | 116 psi | 2 Position 5 Way |
| U.S. Solid 1 Inch Stainless Solenoid Valve | Best heavy-duty valve | 1 inch | 2 | Stainless Steel | 72 psi | Threaded |
| Buyers Products BAV050SA 4-Way Air Valve | Best flexible air valve | 1/4 inch | 5 | Aluminum, Plastic | Not Specified | Flying Leads |
How We Tested & Analyzed Solenoid Valve
This guide was built by comparing the most decision-relevant factors for solenoid valves, including port count, thread size, power type, pressure rating, construction material, and stated application. Those details matter because valves are not interchangeable once the system design is fixed. A compact shutoff valve, a pneumatic directional valve, and a large fluid valve solve different problems, even when they all share the same category name. The analysis therefore centers on fit, function, and operational consequences rather than on superficial similarity.
Construction and operating limits were weighed against the way each valve is meant to be used. That means a higher-pressure rating was not treated as universally better if the valve’s actual purpose was replacement continuity, compact packaging, or multiway air routing. Duty-cycle notes, temperature limits, and compatibility statements were considered as practical constraints, not footnotes. The result is a comparison that reflects how a buyer will actually install and live with the valve, rather than how the part appears in isolation.
Because solenoid valves vary so widely in purpose, the final judgments emphasize tradeoffs instead of one-size-fits-all ranking. Some buyers need exact replacement compatibility. Others need a simple low-voltage shutoff. Others need a multiport pneumatic controller or a larger, more durable body for harsher service. This guide highlights those distinctions so the recommendation can be matched to the application, the environment, and the wiring or plumbing already in place.
Frequently Asked Questions
How do I choose the right solenoid valve size?
Start with the thread size and port count already used in your system. A valve that does not match the existing plumbing or hose fittings usually creates more work than it saves. Larger valves are for larger flow paths, while compact valves are better for small lines and tight enclosures. The right size is the one that fits the system without forcing adapters or redesign.
What matters more, voltage or thread type?
Both matter, but for different reasons. Voltage has to match the power source and control circuit, while thread type determines whether the valve can physically connect to the piping or fittings. If either one is wrong, installation stalls. In many cases, thread compatibility is the first mechanical gate, and voltage is the first electrical gate.
When do I need a multiport valve?
You need a multiport valve when the valve has to do more than open or close a line. Pneumatic cylinders, directional air control, and exhaust management are common examples. If your system only needs simple shutoff, a two-port valve is often easier to install and cheaper to own. Multiport valves are worth it when the flow path itself is part of the control strategy.
Why does duty cycle matter so much?
Duty cycle determines how long a solenoid can stay energized without overheating or wearing prematurely. Some valves are built for intermittent use and can fail early if held on continuously. That is especially important in automation, pumps, and systems that may sit energized for long periods. If your application runs for extended intervals, make sure the valve is rated for that style of use.
Final Thoughts
The best solenoid valve is the one that fits your system in every meaningful way. Port size, voltage, body material, and operating limits are not background details. They are the conditions that determine whether the valve will install cleanly and work reliably over time. Once you match those basics, the rest of the decision becomes much easier, because the valve’s role in the system is already clear.
For a compact general-purpose valve, a replacement part, a pneumatic controller, a heavy-duty large-line option, and a flexible air valve, this group covers the main buying paths without blurring them together. That is the real lesson here: pick the valve for the job, not for the category label. Do that, and the right choice becomes the most practical one as well as the most durable one.
