A 24V motorized ball valve solves a very specific problem. You need automated shutoff or diversion, but you do not want to give up the low restriction and simple plumbing of a ball valve. That makes the category attractive for irrigation, water management, HVAC, and similar systems where the valve may sit open for long periods and then close quickly when power changes. The best options are the ones that match your pipe size, power source, media, and duty cycle without forcing awkward workarounds.
The three valves here cover two common build paths. Two use NSF certified 304 stainless steel and two-wire auto return control, while one uses brass with a standard port and the same 9-24V AC/DC operating range. That means the buying decision comes down to more than voltage. Thread size, flow aperture, pressure tolerance, enclosure rating, and how the valve behaves when power is removed all matter. The right choice depends on whether you are prioritizing potable-water compatibility, compact plumbing, or a sturdier 1-inch in-line shutoff with minimal flow loss.

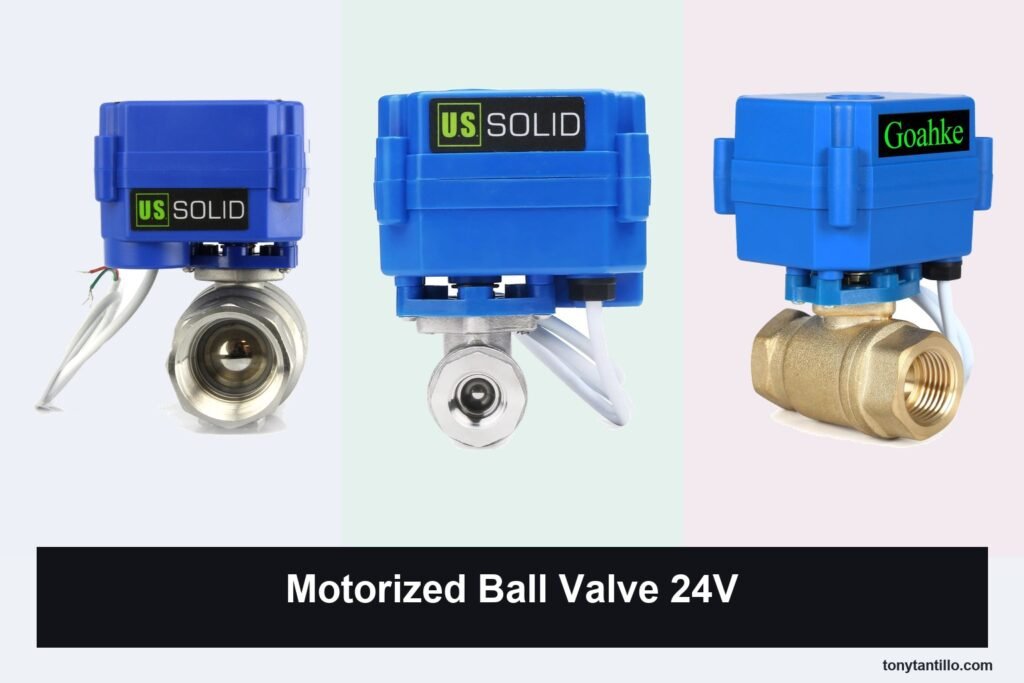

Top Motorized Ball Valve 24V on the Market
U.S. Solid 1-Inch 304SS Motorized Ball Valve
Best for 1-inch potable lines
- 1-inch full port
- NSF certified 304 stainless steel
- 9-24V AC/DC input
- Two-wire auto return
- IP65 enclosure
U.S. Solid 1/4-Inch Electric Ball Valve
Best for compact plumbing
- 1/4-inch NPT body
- 8 mm full-port aperture
- 1000 kPa pressure rating
- 3-5 second travel
- IP65 enclosure
Goahke 1-Inch Brass Motorized Ball Valve
Best brass alternative
- 1-inch brass body
- Standard port bore
- 9-24V AC/DC
- Two-wire auto return
- ASME B16.34 compliant
Motorized Ball Valve 24V Reviews
U.S. Solid 1-Inch 304SS Motorized Ball Valve
ADVANTAGES
LIMITATIONS
This is the most straightforward fit for a full-size automated shutoff on a 1-inch line. The 1-inch full port keeps the valve from becoming the bottleneck, so it is better suited to systems where preserving flow matters more than shrinking the body. NSF certified 304 stainless steel also matters here because it broadens use into potable water and other clean-fluid applications without forcing a material compromise. The 9-24V AC/DC actuation range makes it easier to match to common control gear, especially when the supply is not perfectly standardized.
The control approach is deliberately simple. A 2-wire auto return setup reduces wiring complexity, and the normally closed behavior means the line defaults to shutoff whenever power is removed. That is useful in systems where a safe fail position matters more than staying open. The valve opens or closes in 6 to 8 seconds, which is quick enough for automation without the abrupt snap of a solenoid. IP65 protection and PTFE plus silicone seats also point to a valve built for wet utility spaces rather than a dry indoor panel.
Against the smaller 1/4-inch option, this model is the one to choose when the pipe itself needs to stay unrestricted. Against the brass valve, it is the stronger answer when potable-water compatibility and stainless construction matter more than price. Its cycle life of 80,000 to 100,000 operations is a meaningful durability marker for systems that switch frequently. Buy this one when you need a 1-inch valve that balances clean-fluid compatibility, simple wiring, and strong flow characteristics without overcomplicating the install.
U.S. Solid 1/4-Inch Electric Ball Valve
ADVANTAGES
LIMITATIONS
This smaller valve is the practical option when the installation space is tight and the plumbing itself is only 1/4 inch. The 8 mm flow aperture keeps the passage more open than a restrictive inline shutoff, so the valve is less likely to create an unnecessary pressure penalty in compact systems. NSF certified 304 stainless steel makes it easier to place in potable-water, home brewing, and food-grade transfer lines. The 9-24V AC/DC operating range also keeps the electrical side flexible, which matters when the control source is already standardized around a low-voltage supply.
Its behavior is tuned for automation rather than manual intervention. The 2-wire auto return arrangement simplifies integration, and the normally closed position gives the circuit a predictable safe state when power disappears. Travel time of 3 to 5 seconds is faster than the 1-inch stainless model, so it closes a line quickly without the violent action associated with some other valve types. An internal limit switch cuts power at end of travel, which reduces heat buildup and avoids wasting energy during long periods in the open position.
Compared with the 1-inch stainless version, this valve gives up capacity but wins on size and pressure capability. The 1000 kPa rating is the strongest pressure figure in the group, which makes the compact body more credible in higher-pressure small-bore runs. It is the right pick when you need clean-fluid compatibility and a small footprint more than maximum throughput. For tight plumbing, control simplicity, and faster travel, this is the most focused option in the lineup.
Goahke 1-Inch Brass Motorized Ball Valve
ADVANTAGES
LIMITATIONS
This valve takes a different route from the stainless options by focusing on a brass body with a standard port. The 1-inch brass body keeps it in the same mainline size class as the stainless 1-inch valve, but the standard-port bore is a more restrained approach to flow. That tradeoff can make sense when you want a practical automated shutoff rather than an unrestricted passage. The 9-24V AC/DC range and 2-wire auto return behavior place it in the same basic control family, so the electrical side stays familiar.
The useful distinction is in how it balances flow, materials, and installation priorities. Brass construction with a PTFE ball seat points toward durability, and the stated life expectancy of 80,000 to 100,000 cycles suggests it is built for repeated operation. The 3 to 5 second open or close time is fast enough for irrigation and water control without feeling abrupt. The automatic power cutoff when fully open or closed also matters because it reduces overheating risk during extended use, especially in applications that spend long periods energized.
Relative to the NSF-certified stainless models, this one is the value-forward alternative when brass is acceptable and a standard port is enough. It carries ASME B16.34, NSF, and UL compliance claims, which broadens its appeal for buyers who want familiar specifications around a 1-inch automated shutoff. Choose it when you want a lower-cost path into motorized control and do not need the fully open character of a full-port stainless valve. It is the most balanced pick for general-purpose 1-inch automation where brass construction is a good fit.
How to Choose a 24V Motorized Ball Valve
Choosing a 24V motorized ball valve is mostly about matching the valve to the job rather than chasing the biggest feature list. Start with the pipe size and the flow behavior you need. Then decide whether the system should default closed, how quickly it should move, and whether the material must support potable water or other sensitive media. Once those fundamentals are clear, the remaining details such as thread type, enclosure rating, and pressure capability become much easier to interpret.
Pipe Size and Port
The first choice is whether the valve should behave like a true full-path component or a more compact inline control point. Full-port valves preserve flow better, which matters in larger supply lines and systems where pressure drop is a concern. Standard-port valves can be perfectly appropriate in smaller circuits or places where a slightly narrower bore is acceptable. Matching the valve opening to the pipe keeps the plumbing from becoming the weak link in the system.
Power and Control
Low-voltage AC/DC compatibility is useful because it broadens the set of controllers and power supplies that can drive the valve. A two-wire auto return layout is simpler than more elaborate controls, and normally closed behavior is the safer default for shutoff applications. Think about what should happen when power is lost. If the line should close automatically, choose that behavior deliberately rather than treating it as a side note.
Material and Media
Material choice matters because the valve body and internal wetted parts determine where you can realistically use it. Stainless steel is the safer conversation starter for potable water and corrosion-prone environments. Brass can be a practical alternative when the fluid is compatible and cost control matters. If the application touches drinking water, food-grade transfer, or other sensitive lines, verify the compliance claims carefully and avoid assuming any metal body is interchangeable.
Speed and Duty Cycle
Travel time affects more than convenience. Faster movement can reduce the time a line sits in transition, while slower movement can be easier on certain systems. Duty cycle matters as well because some valves spend long periods open and then cycle only occasionally. A valve that cuts power at the end of travel is useful because it avoids unnecessary heating. For automation, that detail can matter as much as the headline open-and-close speed.
Environment and Protection
The enclosure rating tells you where the valve can live comfortably. A sealed body is important when the installation is exposed to dust, splashing water, or utility-room moisture. Thread type also deserves attention because the wrong connection style creates more work than many buyers expect. In practice, the best choice is the valve that fits the environment without requiring extra adapters, extra sealing steps, or an awkward mounting location.
Motorized Ball Valve Comparison Table
| Product | Best For | Thread Size | Material | Pressure | Connector | Exterior Finish |
|---|---|---|---|---|---|---|
| U.S. Solid 1-Inch 304SS Motorized Ball Valve | Best for 1-inch potable lines | 1 inch | Stainless Steel | 1 pascal | 2-wire | Stainless Steel,Steel |
| U.S. Solid 1/4-Inch Electric Ball Valve | Best for compact plumbing | 0.25 inches | Stainless Steel | 1000 kilopascal | Threaded | Stainless Steel,Steel |
| Goahke 1-Inch Brass Motorized Ball Valve | Best brass alternative | 1 inches | Brass | Not Specified | 2-pin connector | Brass |
How We Tested & Analyzed Motorized Ball Valve 24V
This roundup was built around the decisions a buyer actually has to make before plumbing a motorized valve into a live system. The analysis focused on pipe size, port style, voltage compatibility, control behavior, material compatibility, enclosure protection, and pressure capability. Those factors determine whether a valve is easy to integrate, safe to default closed, and appropriate for water, air, or other common fluids. Features that looked impressive but did not materially affect installation or operation were given less weight.
The comparisons also emphasized practical tradeoffs rather than abstract specifications. A larger full-port valve was treated differently from a compact small-bore unit because the operating consequences are not the same. Likewise, stainless steel and brass were evaluated in terms of where each material makes the most sense, not as interchangeable labels. When a product carried a cycle-life claim, an IP rating, or a power-cutoff behavior, that information was used to judge long-term usefulness and thermal efficiency.
Because the category is narrow, the most important limitation is that not every model provides the same level of detail across the same attributes. Some valves are stronger on flow preservation, others on compact size or pressure tolerance. The goal was to identify the most meaningful differences a buyer can act on immediately. Where a specification was missing or not directly comparable, the analysis stayed conservative and did not assume parity.
Frequently Asked Questions
What does normally closed mean in a motorized ball valve?
Normally closed means the valve returns to the shut position when power is removed. That behavior is useful when you want the line to fail safely instead of staying open after a power loss. It is one of the most important traits to confirm before buying because it determines how the system behaves during outages or controller shutdowns.
Why does port size matter so much?
Port size affects how much the valve restricts flow. A full-port valve is closer to the pipe’s internal diameter, so it tends to preserve flow better. A standard-port design can still work well, especially in smaller plumbing runs, but it usually introduces more restriction. The right choice depends on whether throughput or compactness matters more.
Is stainless steel always better than brass?
Not always. Stainless steel is often the safer choice for potable water and corrosion resistance, while brass can be a sensible material when the fluid is compatible and the application is more general-purpose. The better material is the one that matches the media, the environment, and any compliance requirement you need to satisfy.
How important is the voltage range?
Very important. A wide 9-24V AC/DC range makes integration easier because it works with more control systems and power sources. If the valve voltage does not match your setup, you may need extra hardware or a different controller. Confirm the operating range before you buy, especially if the valve will be part of an automated system.
Final Thoughts
A good 24V motorized ball valve is the one that fits the plumbing first and the automation second. Pipe size, port style, material, and fail position shape how the system behaves every day, while voltage range and protection rating determine how easy the valve is to live with over time. The best option is not simply the one with the most features. It is the one that matches the line, the fluid, and the control logic without forcing compromise.
For a full-size clean-fluid line, the stainless full-port model is the strongest all-around choice. For a compact small-bore run, the 1/4-inch valve is more focused and easier to justify. For buyers who want a brass alternative with familiar 1-inch automation, the third option is the most practical value path. Once you know whether your priority is flow, size, or material, the right answer becomes much easier to see.
